ADVANCED SOLUTION FOR AUTOMATED METALWORKING TOOLS REGRINDING
SMARTER METALWORKING TOOLS RESHARPENING WITH THE MX UPGRADE
A strong focus on market needs, combined with a solid R&D department, has led to the MX, upgrade, representing the evolution of grinding technology in the metalworking field.
The NU5A+MX has been enhanced in terms of precision and versatility, with improvements to both software and mechanics, while maintaining the compact design and ease of use that have always set it apart.
THE 3 KEY ASPECTS OF THE NU5A+MX SHARPENING MACHINE
1. METALWORKING TOOLS EXCELLENCEE

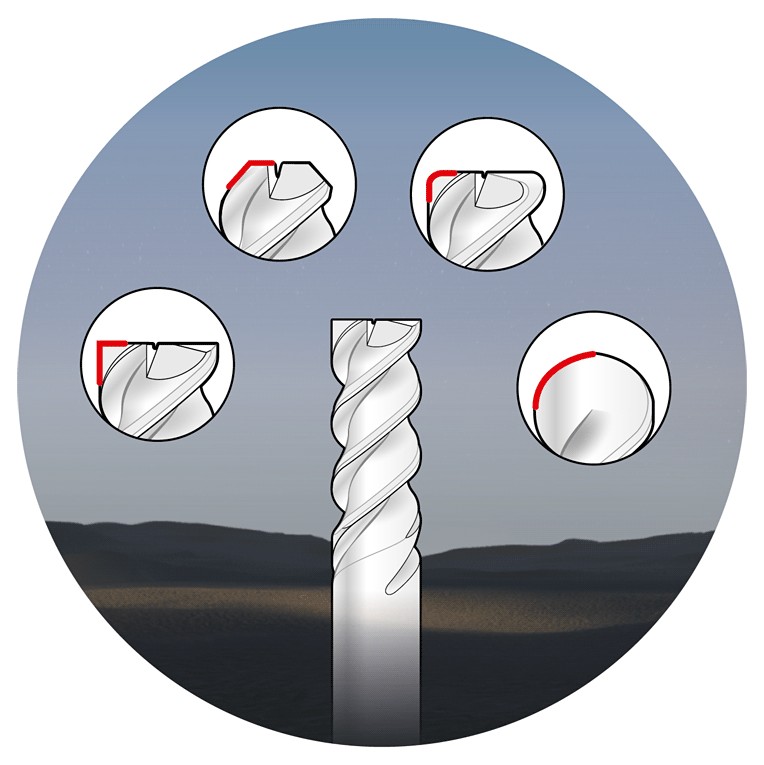

Delivers high-precision advanced operations, including chamfers and corner radii on the tool end, K-land and variable helix geometries, ensuring top performance for precision metal cutting tools.
2. MINIMAL EFFORT, EXTRAORDINARY VERSATILITY

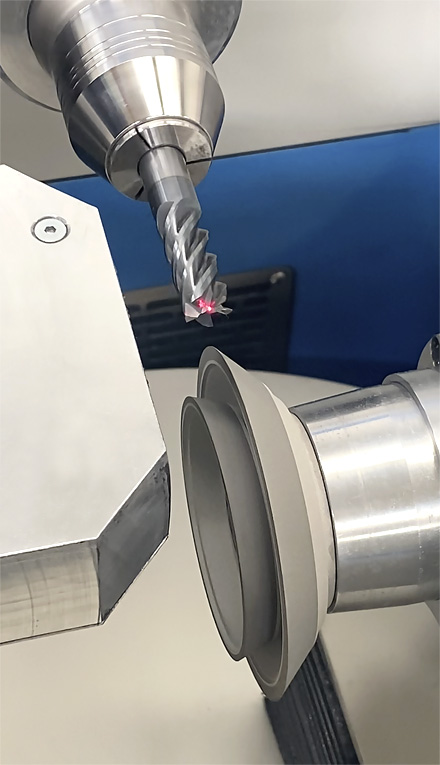

The software automatically generates grinding programs based on laser-scanned data, ensuring accurate machining, collision avoidance, and real-time grinding wheel wear compensation.
3. MEETS YOUR NEEDS, TAILORED EXPERIENCE
Native support for tools from 3 to 28 mm, up to 7 flutes, fully automatic, with no need for operator-entered specifications and complete traceability of all executed processes.
Axes Controller
Proprietary with MIPS32® M4K® Core processor 7 axes can be controlled simultaneously
Operator interface
Touch screen
Diagonal dimension: 10,1” • Resolution 1280×800
Sharpening head
BLDC motor
Speed: – up to 6500 rpm • Nominal power: 630W
Support for 2 grinding wheels (diameters 100mm and 75mm)
Testa di affilatura
Motore BLDC
Velocità: fino a 6500 rpm • Potenza nominale: 630W
Supporto per 2 mole (diametri 100 mm e 75 mm)
Controlled axes
X – Milling cutter axial transfer – Resolution: 0.001mm • Max speed: 4m/min
Y – Milling cutter lateral transfer – Resolution: 0.001mm • Max speed: 4m/min
Z – Grinding wheel height – Resolution: 0.001mm • Max speed: 4m/min
A – Milling cutter rotation – Resolution: 0,0007°
C – Grinding wheel angle rotation – Resolution: 0,001°
B1 – Laser positioning – Resolution: 0,0007°
Analysis system
Class II laser sensor
Hardware: – Industrial PC with Intel®Core ™ i5
Angular precision: 0,03°
Radial precision: 0.6μm
Analysis functions
Automatic analysis of the milling cutter’s geometry:
• Helix angle
• Cutting edge angle
• Rake angle
• End angles
• Cutting edge angle
• Rake angle
• End angles
Analysis of grinding wheels geometry and consumption
Milling cutters supported
Diameters from 3mm to 28mm
Interface
Ethernet TCP/IP – WiFi
Dimensions
200X700X950mm
Weight
660 kg
Lubrication
Minimal lubro cooling
Flow: 0.5 – 3 ml/min
Reservoir: 2l
Motorized nozzle
Extraction
Centrifugal extractor with filter, 300m3/h
MATERIALS AND DIMENSIONS:
Tungsten carbide and HSS
Diameter 3-28mm (shank diameter up to 25mm/1”)
Cutting length up to 150mm
Diameter 3-28mm (shank diameter up to 25mm/1”)
Cutting length up to 150mm
GEOMETRIES:
From 1 to 7 flutes
Helix angle up to 45°
Differentiated
helix angles
Helix angle up to 45°
Differentiated
helix angles
The software is able to recognize chipped cutting edges. The sharpening program setup is totally automated. The integrated collision avoidance system prevents any damages.
Collets dimensions on request.
Collets dimensions on request.
